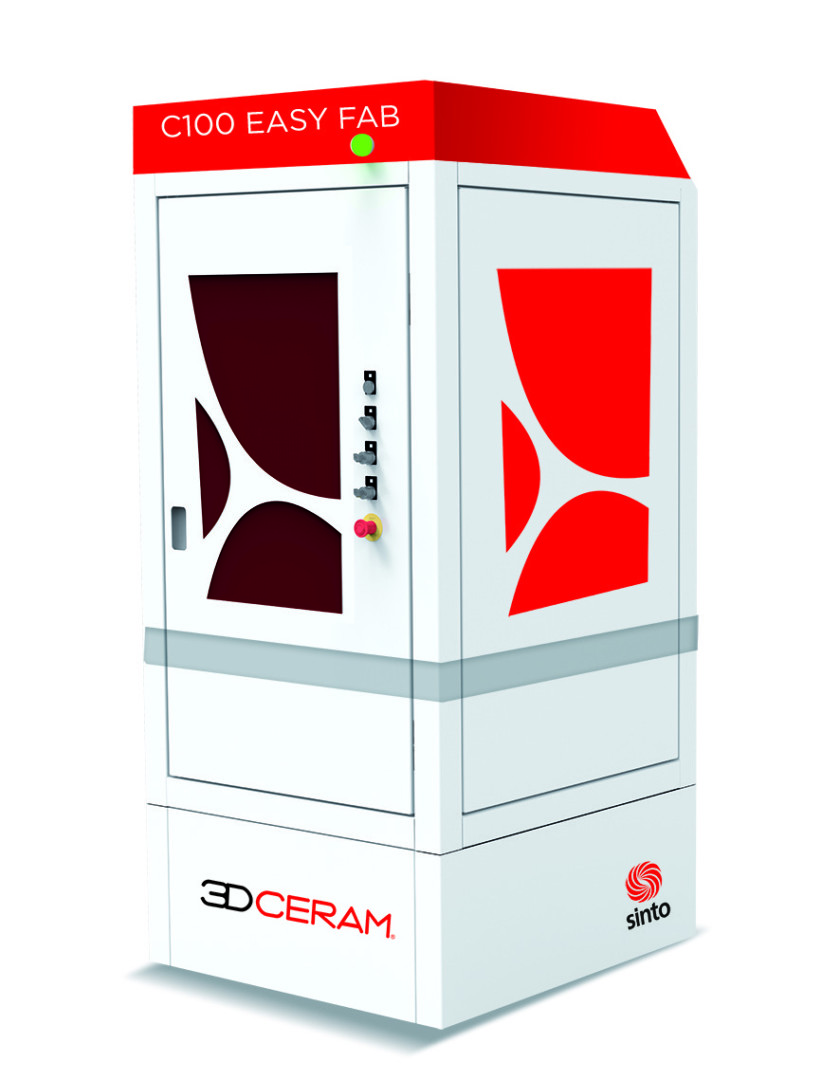

C100 EASY FAB

The 3D printer to develop & prototype then scale up on the C3600 ULTIMATE

• User friendly
• Lab Mode for free development
• Stereolithography laser
• Free link support technology

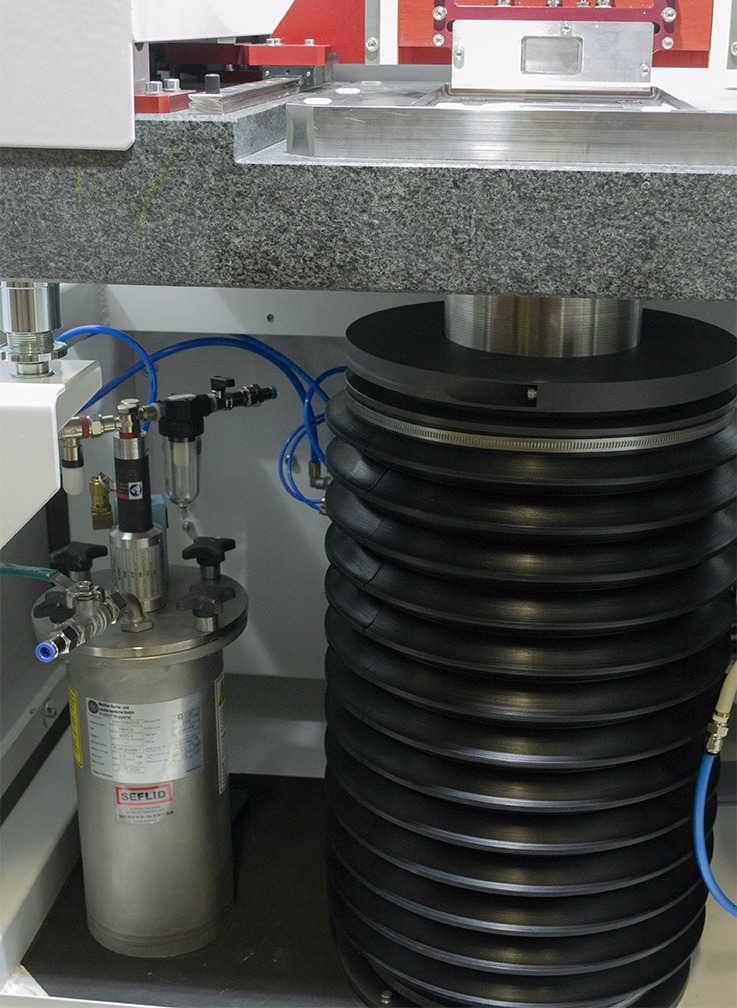

• A pressure tank (2,5 liter) feeding to provide the material quantity required for an optimized run 100*100*150
• Accurate control of the quantity of slurry thanks to the peristaltic pump
• Accessible for persons with reduced mobility
• Easy scale up to C3600 (600 x 600 x 300 mm)

Watch the trailer

Technical Data

Approx. Dimensions

940 x 1060 x 1826 mm (LxPxH)

Build platform size

100 x 100 x 150 mm

Approx. Weight

750 kg

Electrical requirements

220-240 VAC / 50Hz

Electric power

2 kW

Light source

UV Laser

Laser spot diameter

~ 60 μm

UV Wavelength

405 nm

Layer thickness

0.010 – 0.125 mm

Optimal room temperature

20-25°C

Maximum room temperature variation

1°C/hour

Relative humidity

50%

Compressed air

6 bars dry

Hybrid option

-

Printing Without Supports

Top-down stereolithography enables technology that can print without supports. The tray moves down as the part itself is built from the bottom-up. 3DCeram is able produce consistent parts with high precision and fine details.

The feeding of the printing material is done by a printing material is fed into a cartridge which is simply filled at the beginning of the printing cycle. It is possible to re-fill the cartridge during the printing cycle.


OUR MATERIALS

  • 3DCeram has a wide selection of ceramics developed for use with the C100 EASY printer.

    The materials are able to obtain homogenous layers for maximum quality in final products. They guarantee a level of quality recognized by the most demanding industries.

    3Dceram offers a catalogue of ceramics developed for specific needs

  • Zirconia : ZrO2, material with the very good mechanical properties cold. It is able to be colored for jewelry applications, it has excellent mechanical properties at high temperatures, weak thermal conductivity at room temperature, conductor in T> 1000°C, great hardness, good wear resistance.

    Alumina : ZrO2, material with the very good mechanical properties cold. It is able to be colored for jewelry applications, it has excellent mechanical properties at high temperatures, weak thermal conductivity at room temperature, conductor in T> 1000°C, great hardness, good wear resistance.

    Silicon Nitride (Si3N4) : Silicon nitride is among the hardest and most resistant technical ceramics. It has also highly resistant to thermal shocks, wear, and corrosion (liquid and gas). Some applications are in pump and valve components, semiconductors, among others.

Our Services

Maintenance

maintenance, phone support, mechanical & laser assistance

Training

We support you throughout the process and train you to meet your needs from prototyping in laboratories or research centers to mass production of small parts. We offer training to master stripping supports and the free link supports.
