Advantages of this hybrid system are multiple:
• The deposit of the second material can be adjusted according to your needs and specifications.

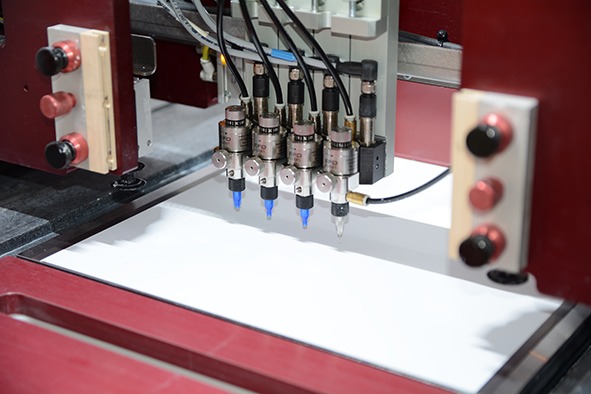

• Inside the system, several type of dispenser systems are possible up to 3 systems : from needle valve to micro dispensing system.
• Hybrid functions integrated in CPS software (one software to control printer and hybrid)
Top-down stereolithography enables technology that can print without supports. The tray moves down as the part itself is built from the bottom-up. 3DCeram is able produce consistent parts with high precision and fine details.
The feeding of the printing material is done by a printing material is fed into a cartridge which is simply filled at the beginning of the printing cycle. It is possible to re-fill the cartridge during the printing cycle.

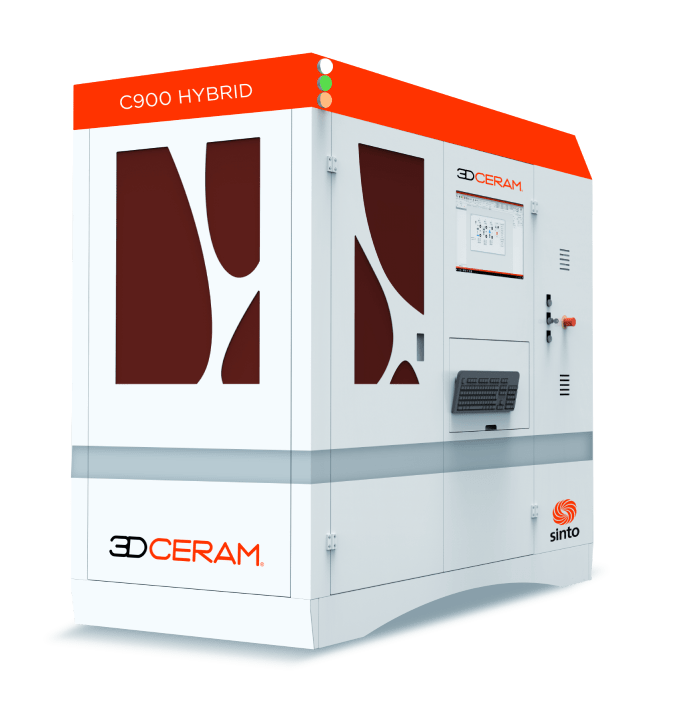

3DCeram ceramics are developed for use with the C900 Hybrid printer.
Indeed, their technical characteristics promote a regular feeding of the printer and allow to obtain homogeneous layers for a maximum quality of the products. They guarantee a level of quality recognized by the most demanding industries.
3Dceram offers a catalogue of ceramics developed for specific needs
- Alumina Toughened Zirconia (ATZ)
-Phosphate tricalcique (TCP)
-Silicon Nitride (Si3n4)
-Aluminium Nitride (AlN)
